The new generation ROCK NC series offers an higher level of efficiency in programming and control of press brakes. The winning MADE in ITALY design and the high quality of all the construction details, guarantee prestigious performances and long product life.
It’s Industry 4.0 Ready thanks to the production and maintenance management and support for remote programming and supervision

Features

INDUSTRY 4.0 READY: Production management and scheduling
Scheduled Maintenance Management for a machine always efficient
Advanced programming assisted by attachments and video
Sampling of the material for an accurate production
Exporting of computed flat patterns as DXF files
Tools and parts import from CAD
3D Simulation with automatic best bend sequence identification with collision detection
Automatic tool selection and machine tooling

Technical specifications

Supply	24Vdc
Cpu card	ITX module, low power consumption, Quad Core Intel Atom J1900 2.0GHz RAM DDR3 2Gb
Monitor	Colours LCD TFT, Capacitive Touch-screen
Hard Disk	mSATA 16 GByte
USB	7 ports 2.0 (one on frontal panel) and 1 port 3.0
Net Card	2 Gigabit Ethernet RJ-45.

Model	Software	Axis number

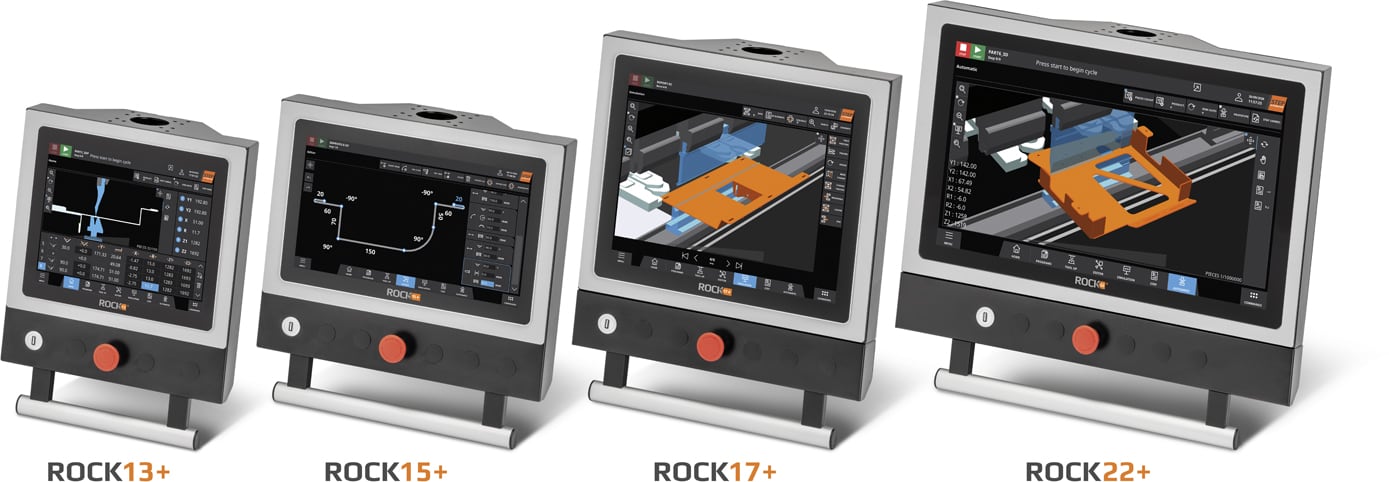

ROCK12	Easy	4
ROCK12+	3D Profile	6
ROCK15	3D Profile	8
ROCK15+	Standard 3D	8

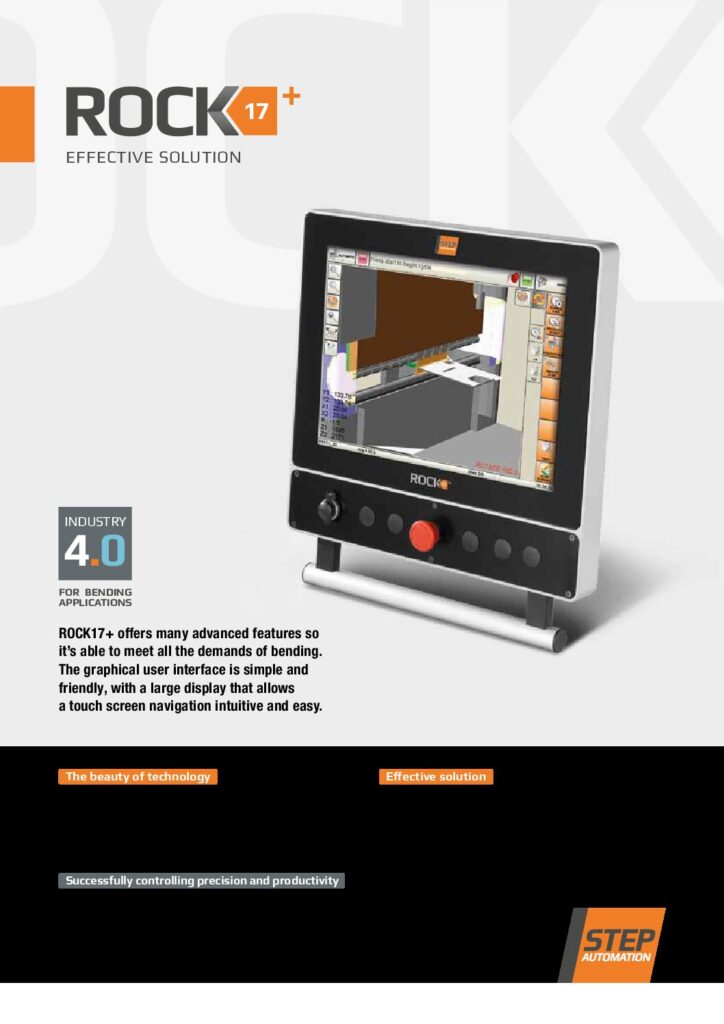

ROCK17+	Standard 3D	12
ROCK22	Standard 3D	12
ROCK	Advanced 3D	12

Software levels

Easy	Simple table programming
3D Profile	2D profiles editor with 3D simulator
Standard 3D	3D editor and simulation, DXF parts import
Advanced 3D	Add to Standard 3D the IGES/STEP parts import

PLC Motion All Under Control

Motion is the modular units that STEP designed to interface and control all types of Press brakes: hydraulics, electrical and hybrids. It’s equipped with a PLC logic with a lot of inputs/outputs. The numerical control, connected through Can Bus or USB interface to one or more Motion modules, is able to completely manage the machine.

Motion3 is the compact module able to drive up to 3 axes.
Motion4 is the standard module able to drive 4 axes.
Motion4+ is the All in One solution which includes the digital amplifier board for the direct interface of the proportional valves.

Details

PLC eMotion Smart digital Motion Control

eMotion is the new modular units that STEP designed like evolution of the traditional Motion line, to interface and control all types of Press brakes: hydraulics, electrical and hybrids.
It extends the traditional functions with the addition of the support of the EtherCAT protocol for the interface to the drives, of the interface to the absolute linear scales and provides for an Ethernet communication with the CNC.

eMotion3 is the compact module able to drive up to 3 axes.
eMotion4 is the standard module able to drive 4 axes.
eMotion4+ is the All in One solution which includes the digital amplifier board for the direct interface of the proportional valves.
eMotionY is the module that provides 2 traditional axes for Y1-Y2 and an Ethercat Master for controlling the register axes
eMotionY+ adds to eMotionY an I / O expansion board and the amplifier for driving the proportional valves

Details

LED Bend Guiding System

STEP has designed a new system of bending assisted by a multicolor LED bar. The system, named LED Bend Guiding System, is used to describe a lot of conditions, that helps the operator to interact quickly with the machine. Productivity and aesthetics are combined in an efficient manner.

OFFLINE

Idea PC e Idea BEND / Folding PC / easycut

STEP Automation offer offline CAD/CAM for all applications developed.
All software, in addition to allowing a quick definition and simulation of part programs, are equipped with functionality for Industry 4.0 interconnection.
